Product Details
Place of Origin: Baoji, China
Brand Name: LHTi,China
Certification: ISO9001, CE, API,etc
Model Number: Titanium Tube
Payment & Shipping Terms
Minimum Order Quantity: 5-10 pieces
Price: negotiable
Packaging Details: Plywood case or pallet, or as per your requirement
Delivery Time: about 7-14 days for delivery
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Pieces Per Month
Standard: |
ASTM B338 |
Classification: |
Grade 9 |
Materials: |
Titanium Metal Or Titanium Alloy |
Processing Service: |
Bending, Cutting |
Type: |
Seamless/Welded |
Meltingpoint: |
1660℃ |
Sample: |
Available |
Surface: |
Pickling Surface/Polished |
Processing: |
Seamless And Weld |
Application: |
Aerospace, Chemical Processing, Medical, Industrial |
Standard: |
ASTM B338 |
Classification: |
Grade 9 |
Materials: |
Titanium Metal Or Titanium Alloy |
Processing Service: |
Bending, Cutting |
Type: |
Seamless/Welded |
Meltingpoint: |
1660℃ |
Sample: |
Available |
Surface: |
Pickling Surface/Polished |
Processing: |
Seamless And Weld |
Application: |
Aerospace, Chemical Processing, Medical, Industrial |

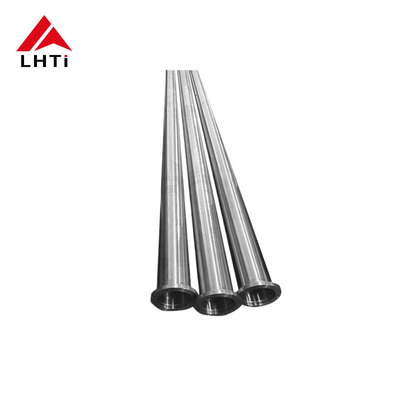

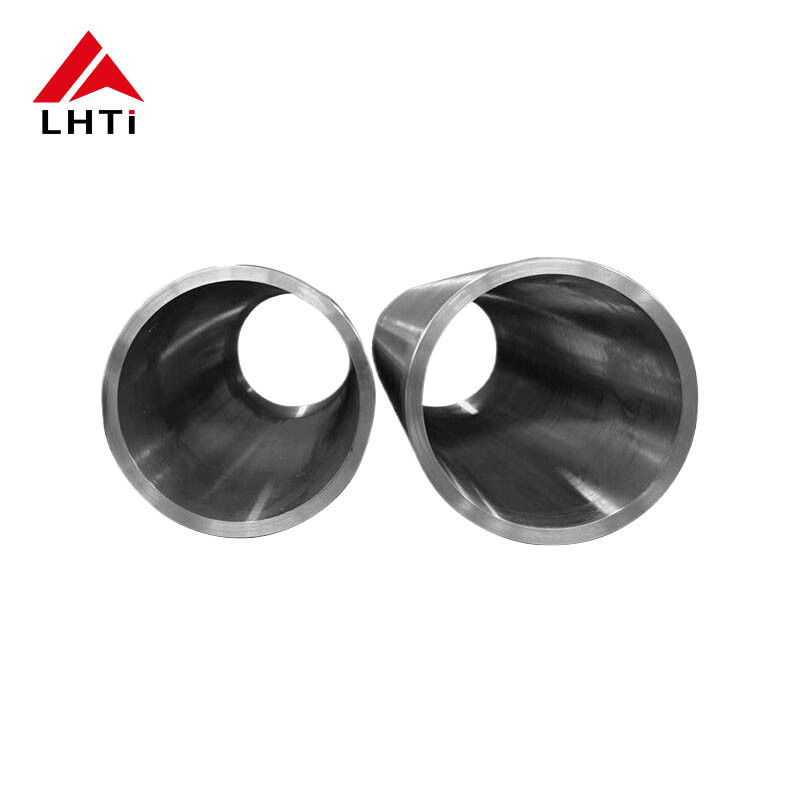

Ti 6Al/4V Titanium Alloy Tube Grade 5 Titanium Tube Straight/Seamless Tubing for Pressure Tubing
Introduction of Titanium Seamless Tube and Titanium Tube:
Ti 6Al/4V stands out as the most extensively utilized among all alpha-beta titanium alloys, constituting over half of total titanium usage worldwide. Typically employed in its annealed state, it remains effective at service temperatures reaching up to 400°C (750°F). Welding of Ti 6Al/4V is facilitated using either matching filler wire or ELI filler wire.
In terms of mechanical properties, Ti 6Al/4V boasts significantly greater strength than commercially pure titanium, while maintaining comparable stiffness and thermal characteristics—excluding its lower thermal conductivity, which is approximately 60% less than CP Ti. One of its key advantages lies in its ability to undergo heat treatment, enhancing its overall performance.
Renowned for its robust combination of strength, corrosion resistance, weldability, and fabricability, Ti 6Al/4V finds widespread application in diverse fields such as military aircraft, turbines, and surgical implants. Its versatility extends to applications requiring temperatures up to 400°C, where it improves ductility and toughness, especially in cold-worked conditions.
This grade of titanium alloy thus remains pivotal across industries that demand high-performance materials capable of withstanding challenging environments and stringent mechanical requirements.
Different Specifications:
These standards ensure that Ti 6Al/4V meets specific requirements related to its chemical composition, mechanical properties, fabrication processes (such as forging and welding), and suitability for various applications, including biomedical implants and industrial components. Additionally, adherence to individual customer specifications ensures that the alloy meets unique performance and quality criteria as needed by specific end-users or applications.
| Temper | Annealed | Cold-worked | ||
|---|---|---|---|---|
| Tensile Rm | 116 | ksi (min) | 150 | ksi (min) |
| Tensile Rm | 800 | MPa (min) | 1034 | MPa (min) |
| R.p. 0.2% Yield | 102 | ksi (min) | 135 | ksi (min) |
| R.p. 0.2% Yield | 700 | MPa (min) | 930 | MPa (min) |
| Elongation (2” or 4D gl) | 10 | % (min) | 8 | % (min) |
| Specific Heat (0-100°C) | 565 | J.kg-1.°K-1 |
| Thermal Conductivity | 6.7 | W.m -1.°K-1 |
| Thermal Expansion | 8.6 | μm/μm/°C |
| Modulus Elasticity | 120 | GPa |
| Electrical Resistivity | 17.1 | Ohm-cm |
| Density | 4.43 | g/cm3 |
Applications of Titanium Tube:
Surgical Implants: Due to its biocompatibility, corrosion resistance, and strength, Ti 6Al/4V is commonly used in orthopedic implants such as hip stems, bone plates, and dental implants.
Aerospace Tubing: Its lightweight nature, high strength-to-weight ratio, and resistance to corrosion make Ti 6Al/4V ideal for aerospace applications. It is used in aircraft components like airframes, engine components, and hydraulic tubing.
Pressure Tubing: Ti 6Al/4V's excellent mechanical properties and corrosion resistance make it suitable for high-pressure applications. It is used in tubing for oil and gas exploration, hydraulic systems, and marine environments where durability and reliability under pressure are crucial.
