Product Details
Place of Origin: Baoji, China
Brand Name: LHTi
Certification: ISO9001, TUV etc.
Model Number: LH-bar
Payment & Shipping Terms
Minimum Order Quantity: 500kg
Price: US dollar $25/pc--US dollar $28/pc
Packaging Details: Wrapped by foam contained in plywood box for export
Delivery Time: 3-15 work days
Payment Terms: L/C, D/P, T/T, Western Union，paypal
Supply Ability: 5 tons per month
Product Name:: |

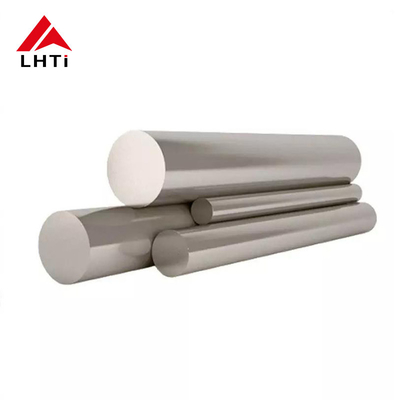

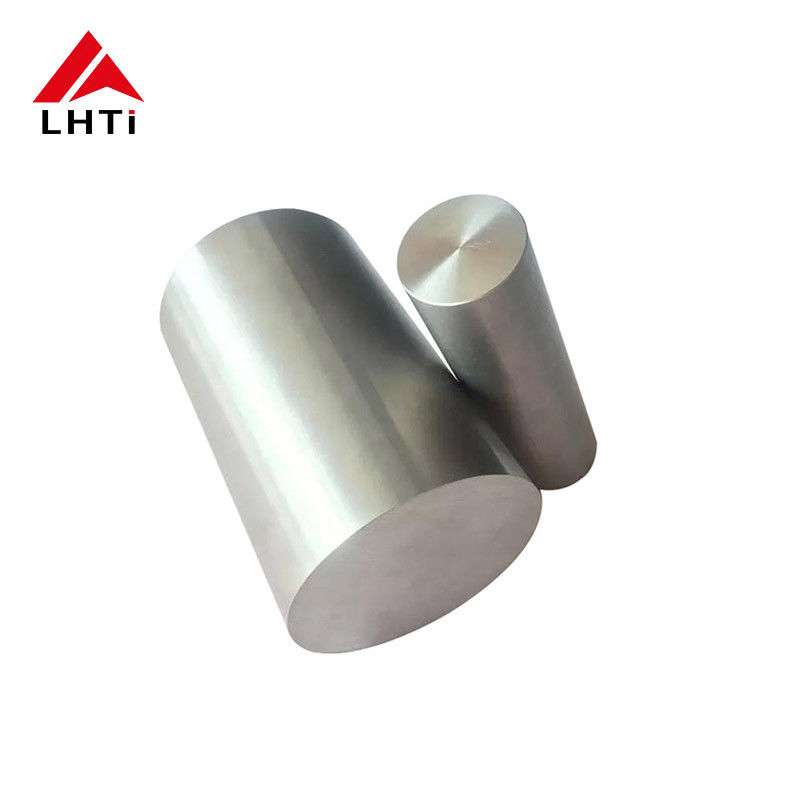

Titanium Bar |
Material Grade:: |
Gr1,Gr2 |
Key Words:: |
ASTM B338 Titanium Tube |
Surface:: |
Pickling Surface |
Application:: |
Heat Exchanger |
Pipe Diameter:: |
Customized |
Length:: |
6000mm |
SMLS Or Welded:: |
Seamless |
Product Name:: |
Titanium Bar |
Material Grade:: |
Gr1,Gr2 |
Key Words:: |
ASTM B338 Titanium Tube |
Surface:: |
Pickling Surface |
Application:: |
Heat Exchanger |
Pipe Diameter:: |
Customized |
Length:: |
6000mm |
SMLS Or Welded:: |
Seamless |
Introduction
The biocompatibility of Grade 5 titanium ensures that it integrates well with human tissue, significantly reducing the risk of adverse reactions. Additionally, its corrosion resistance makes it suitable for long-term implantation in the body, maintaining structural integrity even in harsh biological environments. With compliance to rigorous standards such as ASTM F136, these titanium bars are manufactured under strict quality controls, ensuring reliability and safety.
In medical settings, the 10mm and 12mm Gr5 titanium alloy bars are utilized in various applications, including orthopedic implants, dental devices, and surgical instruments. Their versatility and strength allow for innovative designs that enhance patient outcomes. As the medical field continues to advance, the use of titanium alloys like Gr5 will remain integral in developing effective and safe medical solutions.
Benefits of Four-Way Ball Valves:
Four-way valves provide significant advantages in specific applications such as pneumatic systems, hydraulic systems, and various industrial processes. In pneumatic systems, these valves play a crucial role in air control by managing the flow of compressed air across different segments of the system. They also serve in pressure release applications, ensuring controlled release to prevent system damage or safety risks.
In hydraulic systems, four-way valves enable precise regulation of fluid flow by directing the movement of hydraulic fluid through different components. This capability allows for accurate control of machinery movements and operations. Moreover, in industrial settings like manufacturing and chemical processing, where precise fluid management is critical, these valves facilitate the regulation of flow rates, the blending of fluids, and the exact positioning of machinery.
Overall, the precise fluid control afforded by four-way valves enhances operational efficiency and effectiveness across diverse applications. By optimizing performance and minimizing waste, these valves contribute to significant time, cost, and resource savings in various industrial processes and systems.
Gr 5 titanium alloy bar / rod Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Gr 5 titanium bar / rod Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 |
Psi – 128000 , MPa – 880 |
14 % |
Equivalent Grades for Gr 5
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
Supply grades: TA0, TA1, TA2, TA3, TA9, TA10, BT1-00, BT1-0, Gr1, Gr2
| Name | Pure Titanium & Titanium Alloy Tube /Pipe/Tubing |
| Tube Shape | Round |
| Material | Gr1,Gr2 |
| Standard | ASTM B338 |
| SMLS Or Welded | Seamless(SMLS) |
| OD | 19mm (1.25")/ 25.4mm, 38mm |
| Wall Thickness | 1.2mm |
| Length | 6m long |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application | Chemical Equipment Sea Water Equipment Heat Exchangers Condensers Pulp and Paper Industry |
| Grade | N(%) | C(%) | H(%) | Fe(%) | O(%) | Ti | Other , max |
| 1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.20 | ≤0.18 | Bal | ≤0.4 |
| 2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.30 | ≤0.25 | Bal | ≤0.4 |
| Grade | Tensile Strength(min) | Yeild Strength(0.2% offset)) | Elongation(%) | ||||
| ksi | MPa | Min | Max | ||||
| Ksi | Mpa | Ksi | Mpa | ||||
| 1 | 35 | 240 | 15 | 140 | 45 | 310 | ≥24 |
| 2 | 60 | 400 | 40 | 275 | 65 | 450 | ≥20 |
ASTM B338 titanium tube
Used:Heat exchanger, condenser and various pressure vessels
Wall thickness:0.5mm to 4.5mm
Length:3000mm /6000mm and longger to 9000mm
Outside Diameters:10mm to 114mm
Wall thickness tolerance: +/- 10%
Length tolerance: +3.2mm
2.titanium tube photo
3.Factory show
4.Production Process
5.Related products
More details please feel free contact us.
